Comparing Insulated Concrete Form (ICF) Construction with Traditional Building Methods
Building a home isn’t as straightforward as it used to be. Climate change and rising energy costs are forcing architects, engineers, and homeowners to take a long, hard look at how they can use the knowledge and technology gained over the years to build better, stronger, and more innovative homes.
At K Graber Construction, we build anything! When it comes to housing, Insulated Concrete Form (ICF) construction is the way of the future. Energy-efficient, disaster-resistant, and future-proof, ICF is a smart investment and a wise choice for protecting your family.
This blog will comprehensively compare and contrast ICF and traditional construction methods, highlighting their advantages, disadvantages, and applications.
Let’s get started!
What is Insulated Concrete Form Construction?
ICF construction involves using Insulated Concrete Forms— hollow blocks made of insulating material, typically two sheets of expanded polystyrene (EPS), a material similar to styrofoam. Plastic webbing between the sheets forms the block. These blocks are stacked to form the shape of a building's walls. Metal rebar is placed in the hollow spaces for reinforcement. The forms are then filled with concrete, creating a solid, monolithic wall with excellent thermal and acoustic insulation properties. ICF construction is recognized for its energy efficiency, strength, and sustainability and is a key component in building net zero homes.
As mentioned at the blog's beginning, we’ll compare ICF to traditional construction methods. If you’d like to learn more, take a look at our deep dive into ICF.
Let’s look at the key features of ICF Construction:
- Thermal Insulation: ICF walls provide superior thermal insulation to traditional wood or steel framing. The continuous layer of EPS on all sides of the concrete core significantly reduces thermal bridging, leading to lower heating and cooling costs.
- Sound Insulation: The combination of concrete and insulating foam in ICF walls offers excellent soundproofing capabilities, making it an ideal choice for residential and commercial buildings in noisy environments. With ICF’s soundproofing qualities, you can say goodbye to loud noises from the street outside and your kid downstairs yelling while playing video games!
- Structural Strength: Concrete is inherently strong and durable—up to 35 newtons! ICF walls can withstand severe weather conditions, including stresses from high winds and earthquakes, making them a preferred choice in disaster-prone areas.
- Energy Efficiency: The thermal mass of concrete, combined with the insulation properties of the foam, helps maintain a stable indoor temperature, reducing the need for artificial heating and cooling. Houses built using ICF exterior walls require an estimated 44% less energy to heat and 32% less energy to cool than comparable frame houses.
- Sustainability: ICF construction uses materials that are often recyclable and have a lower environmental impact than traditional construction materials, such as the EPS insulating shell in the blocks.
Traditional Construction Methods: Wood and Steel Framing
Traditional construction methods primarily involve using wood or steel as the main structural elements. Each of these materials has characteristics that influence their application in building construction. Let’s examine two of the most common traditional methods in the United States: Wood and steel framing.
Wood Framing, also known as stick framing, is one of the oldest and most widely used construction methods, particularly in residential buildings. It involves using timber beams and studs to create a framework for a building.
- Advantages of Wood Framing

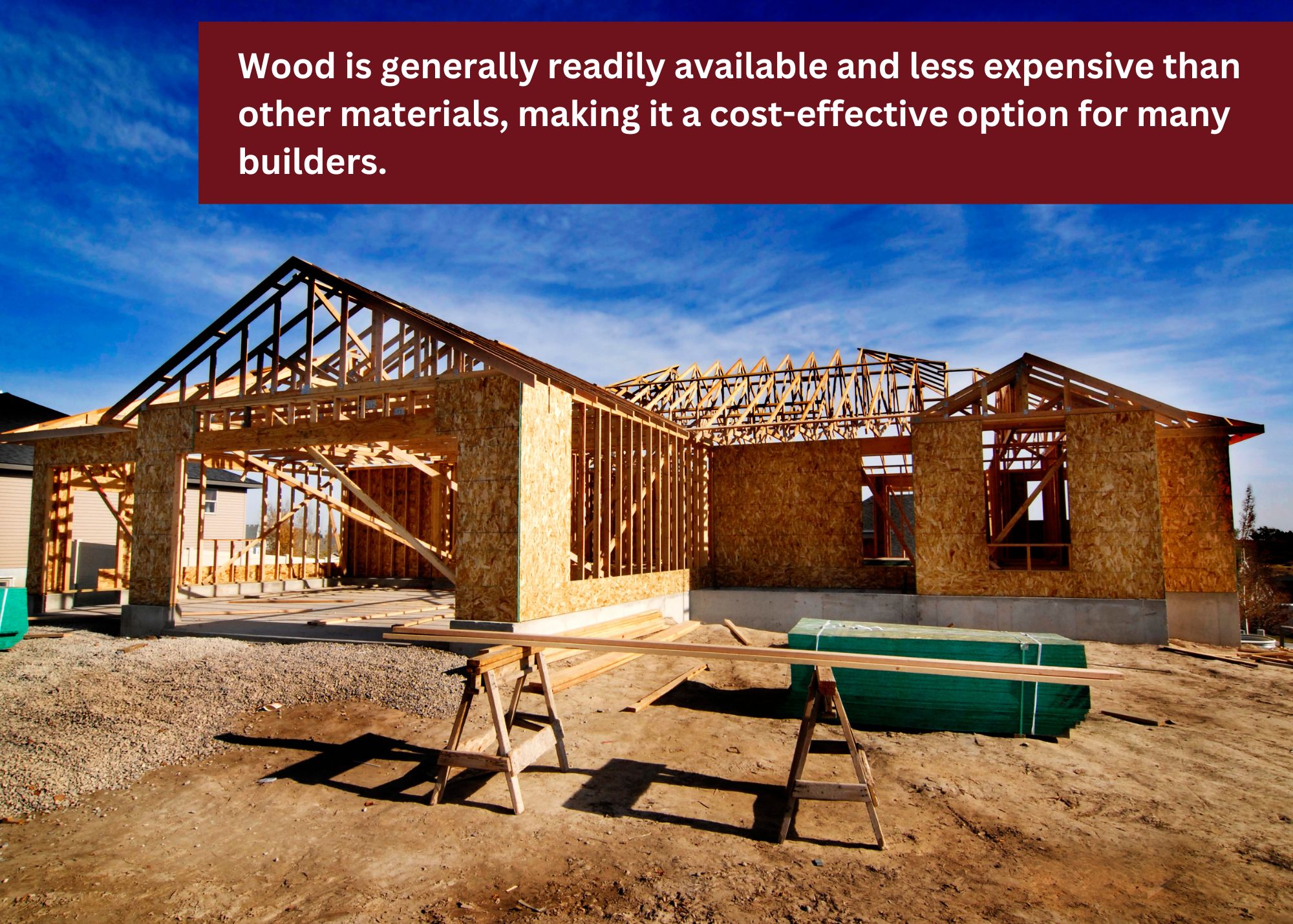

1. Cost-Effectiveness: Wood is generally readily available and less expensive than other materials, making it a cost-effective option for many builders.
2. Ease of Construction: Wood is easy to work with, allowing for quick and efficient construction. It is also relatively lightweight, reducing transportation and handling costs.
3. Versatility: From walls, trusses, and even curved beams, Wood can be easily cut, shaped, and even laminated, making it suitable for a variety of architectural designs and modifications.
4. Sustainability: Wood, sourced from responsibly managed forests, is a renewable resource with a lower carbon footprint than steel and concrete.
- Disadvantages of Wood Framing
1. Susceptibility to Pests: Wood is prone to damage from insects such as termites, carpenter ants, and carpenter bees, which can compromise the structural integrity of a building.
2. Fire Risk: Wood is combustible, posing a higher fire risk than non-combustible materials like concrete and steel.
When grouped, wooden homes have the potential to spread fire quickly, as tragically demonstrated in the recent LA fires.
3. Severe Weather Risk: Wood-framed houses are also highly susceptible to severe wind damage from hurricanes and tornadoes. Due to climate change, the frequency of weather-related events is increasing, and there is a movement towards building more resilient homes.
4. Moisture Sensitivity: Wood can warp, rot, or swell when exposed to moisture, leading to maintenance challenges over time.
Steel framing uses beams and columns to create a building's structural framework. It is commonly used in commercial and industrial construction.
- Advantages of Steel Framing

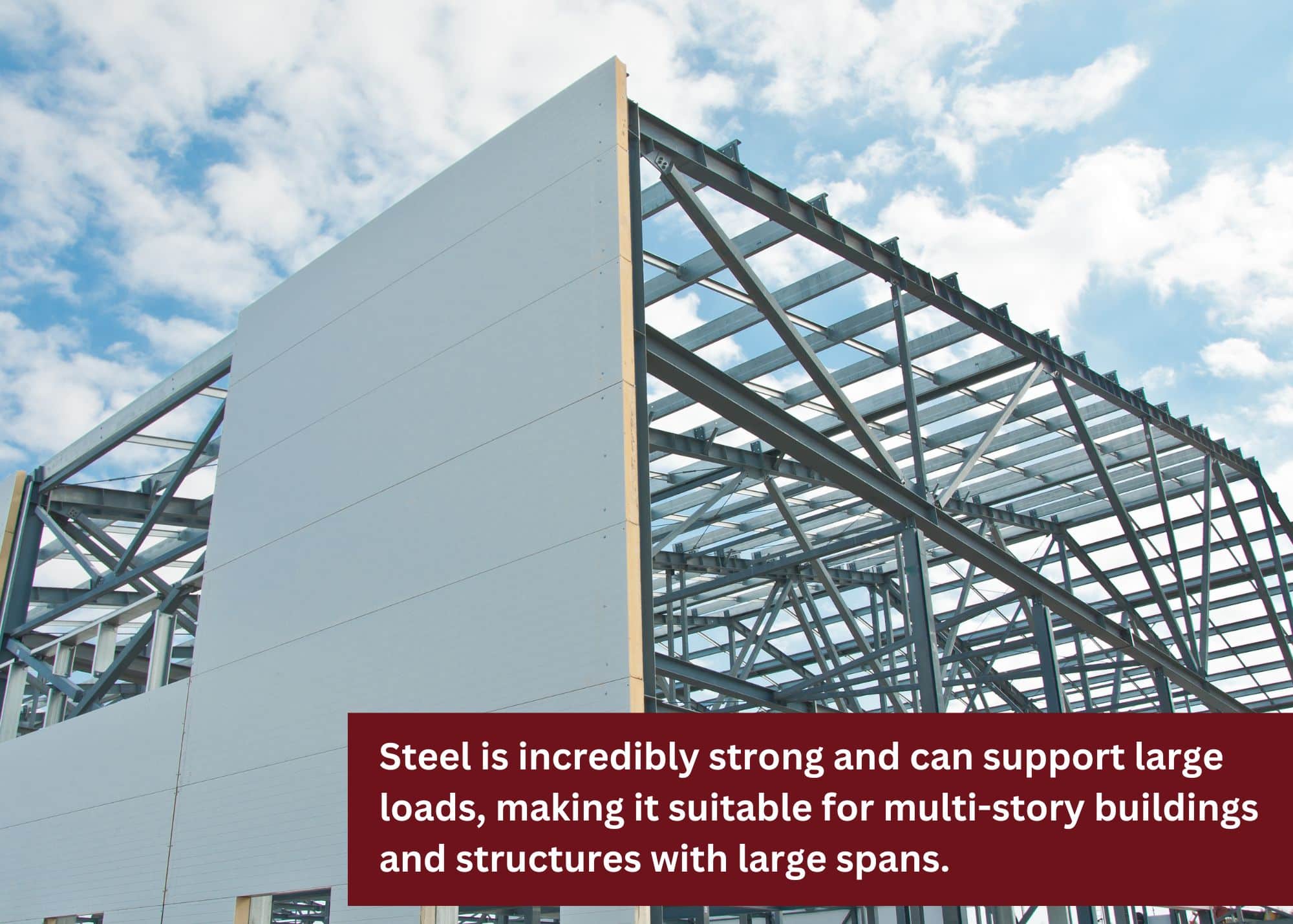

1. Strength and Durability: Steel is incredibly strong and can support large loads, making it suitable for multi-story buildings and structures with large spans.
2. Fire Resistance: Steel isn’t impervious to fire, but it is non-combustible and offers better fire resistance than wood, enhancing the safety of the building.
3. Pest Resistance: Unless an alien being comes to earth trying to change human behavior, steel is impervious to pests and does not suffer from the same vulnerabilities as wood.
4. Precision and Consistency: Steel components are manufactured to precise specifications, ensuring consistent quality and reducing on-site errors.
- Disadvantages of Steel Framing
- Thermal Conductivity: Steel is a poor insulator and can conduct heat and cold, leading to potential energy inefficiencies if not correctly insulated. Specialized insulation is required to insulate steel buildings.
- Corrosion: Steel is susceptible to corrosion if not adequately protected, especially in humid or coastal environments.
- Cost: Steel is more expensive than wood in terms of material costs and the need for skilled labor and equipment to work with it.
Comparing ICF Construction with Traditional Methods
- Energy Efficiency: ICF construction offers superior energy efficiency due to its excellent insulation properties. Combining concrete and EPS forms a thermal barrier that minimizes heat transfer, reducing energy consumption for heating and cooling. In contrast, traditional wood and steel framing require additional insulation to achieve similar energy performance, which can increase construction costs.
- Structural Integrity and Durability: ICF walls provide exceptional strength and durability and can withstand extreme weather conditions and natural disasters. Several examples of structures still standing after fires or hurricanes attest to the strength of ICF construction. While steel framing also offers significant strength, wood framing falls short in this regard, being more vulnerable to environmental factors such as moisture and pests.
- Construction Speed and Complexity: Wood framing is generally faster and simpler to construct than ICF and steel framing. The lightweight nature of wood and the availability of prefabricated components contribute to its ease of construction. While not as fast as wood framing, ICF construction benefits from using modular forms that can be quickly assembled and filled with concrete. In fact, the ease of ICF construction has been compared to putting Lego blocks together! On the other hand, steel framing often requires more time and expertise due to the need for precise fabrication and assembly.
- Cost Considerations: The cost of construction varies significantly between these methods. Wood framing is typically the most cost-effective option, followed by ICF and steel framing. While more expensive, steel framing is justified in projects requiring high structural strength and fire resistance.

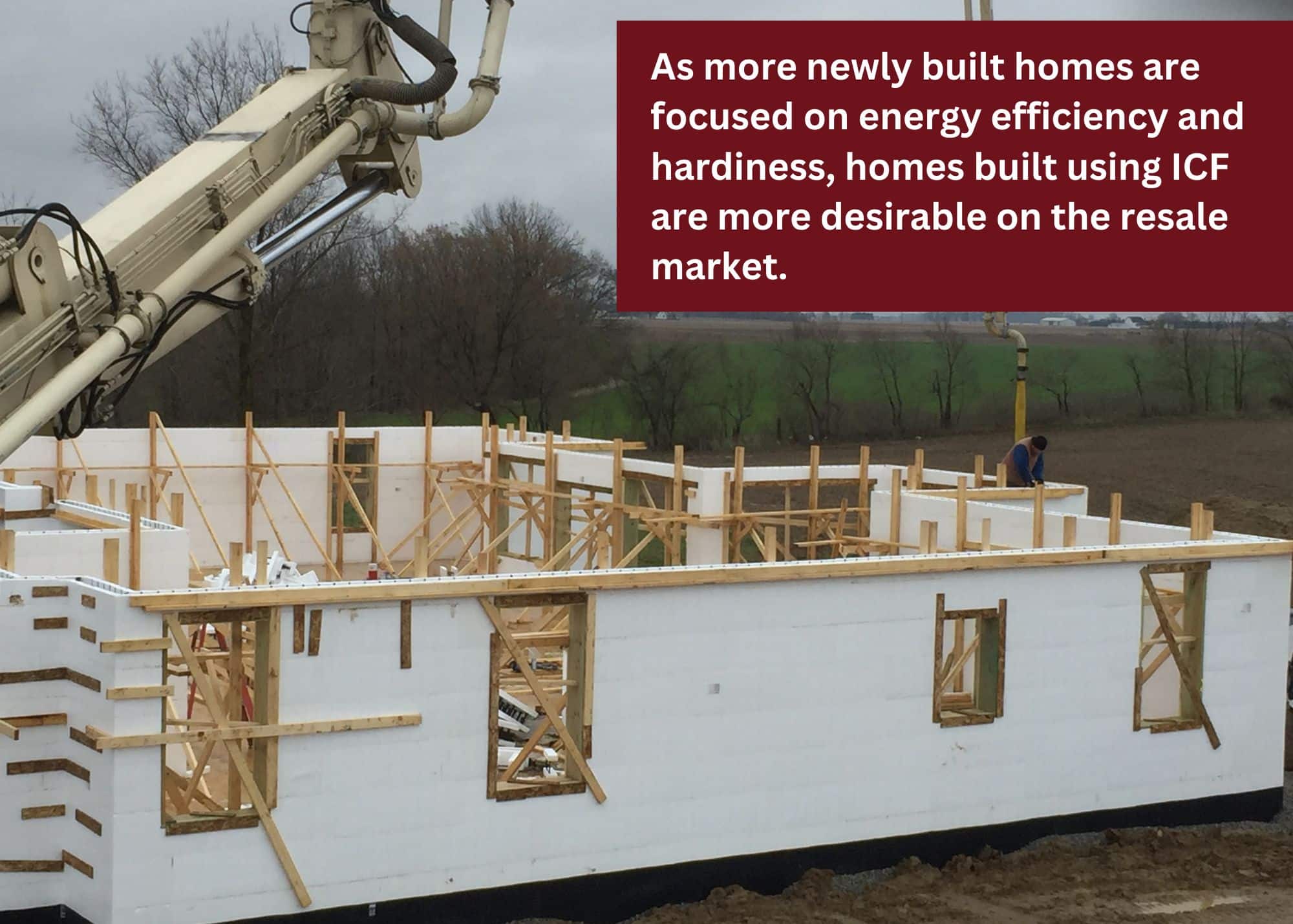

- Return on Investment: As more newly built homes are focused on energy efficiency and hardiness, homes built using ICF are more desirable on the resale market.
- Environmental Impact: ICF construction is often considered more environmentally friendly due to its energy efficiency and the potential for using recycled materials. Most discarded ICF material can be recycled and even repurposed. When sourced sustainably, wood framing has a low environmental impact, but its susceptibility to pests and moisture can lead to increased maintenance and replacement costs. Steel framing, while durable, has a higher initial carbon footprint due to the energy-intensive manufacturing process.
ICF Considerations
While ICF has much potential to be the last word in construction efficiency and durability, here are some considerations if you intend to build with ICF:
- Higher material cost: ICF requires a concrete and rebar core for structural stability and strength, so that initial costs will be higher. ICF homes are estimated to cost 3-5% more than wood-framed homes, but long-term savings in energy and maintenance will offset that cost.

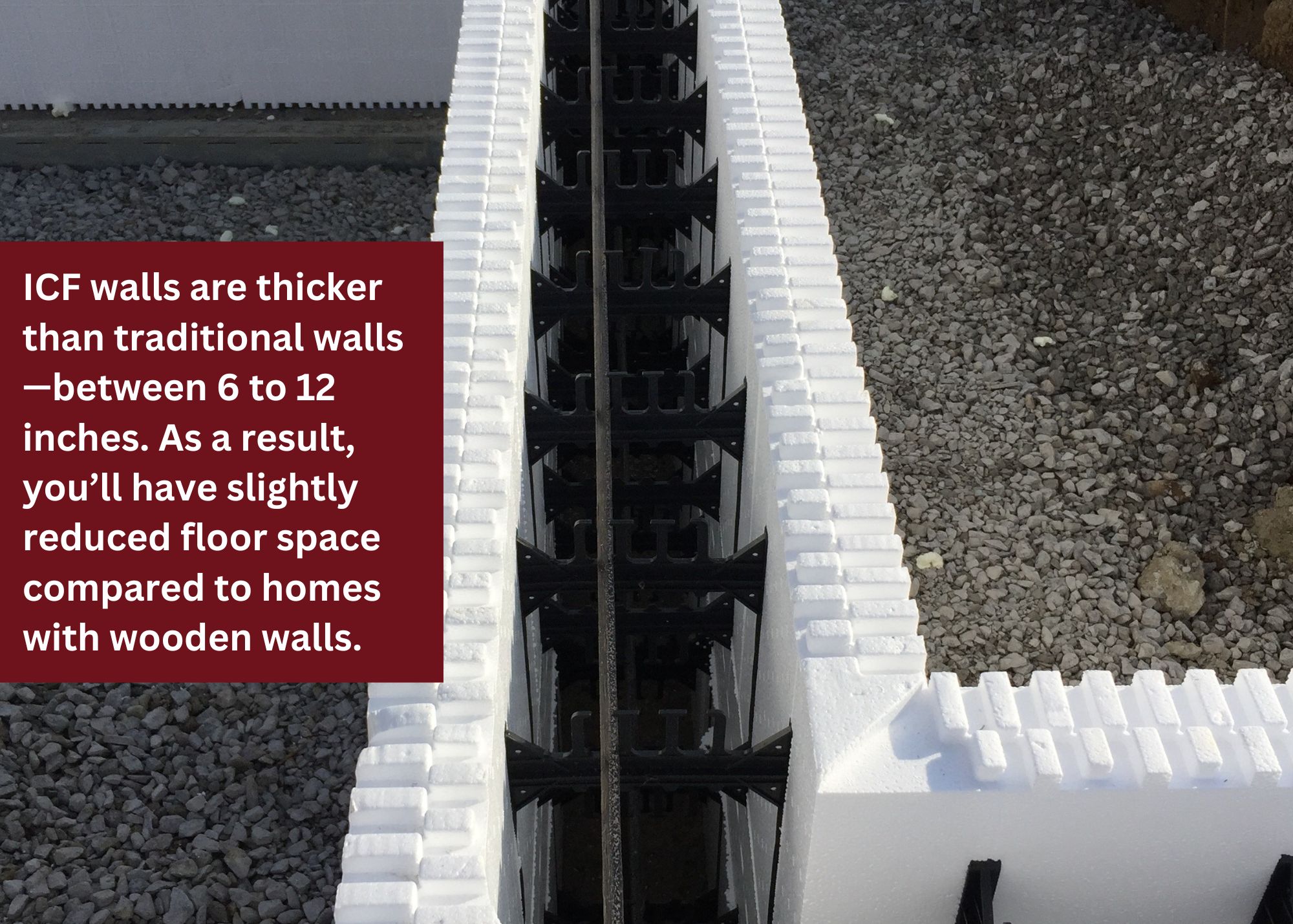

- Reduced interior space: ICF walls are thicker than traditional walls—between 6 to 12 inches. As a result, you’ll have slightly reduced floor space compared to homes with wooden walls.
If you convert a wood-frame design to ICF, keep the internal dimensions the same and increase the wall thickness outward.
- Design and modification challenges: Because the walls are made of rebar-reinforced concrete, adding doors and windows to ICF walls will be difficult. Therefore, the building’s design must be meticulous.
- Availability and knowledge: Although the ICF core concept has existed since 1946, ICF as a building method in the United States is relatively new. As a result, it can be challenging to find knowledgeable and competent contractors who can use ICF.
Applications and Suitability
Ultimately, the choice between ICF and traditional construction depends on the project's specific requirements. ICF construction is ideal for energy-efficient residential and commercial buildings, especially in regions with extreme weather conditions.
Wood framing will always be a popular option due to its low cost and ease of construction. In contrast, steel framing will remain the method of choice for high-rise buildings, industrial structures, and projects prioritizing fire resistance and structural strength.
Conclusion
We hope our blog has been informative and given you food for thought on how you can benefit from ICF construction.
At K Graber, ICF construction is here to stay. From our offices in Amboy, IN, our passion is to build sturdy and professionally constructed structures that provide maximum value for their owners in the North Central Indiana area. An ICF home isn’t just a clever investment that saves you money in the long run; it’s also a legacy you can pass on to future generations.
Contact us today to find out how we can partner with you on your next home!
